Having been a heavy VirtualBox user while under Linux, I once came across this useful interactive script that I could run in my drop-down terminal that would easily allow me to manage my VMs. So useful was it, that it was aliased on all workstations i used, and carried around in my dropbox account. Here is a screenshot of it in action:
vbctl.sh
#!/usr/bin/env bash
##################################################################################################
# vbctl.sh
# VirtualBox Control
# This script scans and shows information on all virtual machines installed on the current host
# allows to perform basic tasks (start, pause, stop, etc)
# Designed particularly for headless machines
#
# Version 1.0 - May 2, 2011
# Version 1.1 - July 2011 - Enable VRDE activation, improve presentation.
# Version 1.2 - August 2011 - Fix machine listing when having sharedfolders.
# Version 1.3 - August 2011 - Using UUID instead of name for all functions.
# Correctly handle machine names with spaces
# Code cleaning and ANSI colors on menus.
# Animation while reading machines status.
# New option to change VRDE port.
# Removal of temporary files on exit.
#
# Version 1.4 - September 2011 - Added more color to main menu (guru meditation)
# Added option to mount and unmount cd/dvd images
# Grouped actions in commands menu
#
# Version 1.5 - September 2011 - Minor fix to list iso and img files for floppy
# controllers.
#
# Version 1.6 - October 2012 - Incorporating changes by Lance Norskog from Redwood City, CA
# - Replacing 'seq' with a function to make it run under MacOS X
# - Changed interpreter to /usr/bin/env to make the script more portable
# Minor cosmetic changes in VRDE and Load/Eject functions of the VM menu
#
# Version 1.7 - January 2013 - Minor fix in seq function to prevent printing an extra delimiter char
#
# Version 1.8 - November 2013 - Incorporating new features made by Sofia Perez
# - Clone VM
# - Destroy VM
#
# Version 1.9 - November 2013 - Colored progress bar when loading VM data on TTY that support color
# Support for dumb terminals without color (rotating wheel and vm state report)
#
#
# Developed on Oracle Virtual Box 4.0.4 on linux
# Tested on Linux and MacOS X
#
#
# List of contributors:
#
# Carlos Acosta Alamo
# Original versions 1.0 .. 1.2
# http://oracleexamples.wordpress.com
# Oracle DBA
#
# Joao Figueiredo
# Version 1.3 .. 1.5, 1.7, 1.9
# http://www.enide.net
#
# Lance Norskog
# Version 1.6
# http://
#
# Sofia Perez
# Version 1.8
# http://
#
#
# Licensed under Creative Commons Attribution 3.0 Unported (CC BY 3.0)
# http://creativecommons.org/licenses/by/3.0/
# http://creativecommons.org/licenses/by/3.0/legalcode
#
###################################################################################################
## Current version
VERSION=1.9
## Virtualbox suggested VRDE ports
MIN_VRDE_PORT=5000
MAX_VRDE_PORT=5100
#
## Enable color only on these terminal types
#
## You can add more if you know they support color. Just 'echo $TERM' in your shell and add
## the terminal name to this list as another '-o "$TERM" = "terminalName"'
#
if [ "$TERM" = "ansi" -o "$TERM" = "xterm" -o "$TERM" = "linux" -o "$TERM" = "screen" ]; then
## ANSI foreground colors
NORMAL="\033[0m"
DARKRED="\033[31m"
RED="\033[31;1m"
DARKGREEN="\033[32m"
GREEN="\033[32;1m"
DARKYELLOW="\033[33m"
YELLOW="\033[33;1m"
DARKBLUE="\033[34m"
BLUE="\033[34;1m"
DARKPURPLE="\033[35m"
PURPLE="\033[35;1m"
DARKCYAN="\033[36m"
CYAN="\033[36;1m"
WHITE="\033[37;1m"
UNDERLINEWHITE="\033[37;4m"
WHITEONRED="\033[37;41;1m"
BAR_BACK_COLOR="\033[41m"
BAR_FORE_COLOR="\033[47m"
USE_COLOR=1
else
## No colors
NORMAL=""
DARKRED=""
RED=""
DARKGREEN=""
GREEN=""
DARKYELLOW=""
YELLOW=""
DARKBLUE=""
BLUE=""
DARKPURPLE=""
PURPLE=""
DARKCYAN=""
CYAN=""
WHITE=""
UNDERLINEWHITE=""
WHITEONRED=""
BAR_BACK_COLOR=""
BAR_FORE_COLOR=""
USE_COLOR=0
fi
## wheel animation
WHEEL_INDEX=1
WHEEL_CHARS[0]="-"
WHEEL_CHARS[1]="\\"
WHEEL_CHARS[2]="|"
WHEEL_CHARS[3]="/"
function animate_wheel()
{
# remove old char
echo -e "\b\b\c"
# print char
echo -e "${WHEEL_CHARS[$WHEEL_INDEX]} \c"
# increment index
WHEEL_INDEX=`expr $WHEEL_INDEX + 1`
if [ $WHEEL_INDEX -ge 4 ]; then WHEEL_INDEX=0; fi
}
# macos has no 'seq', had to replace it.
# $1 number of items (1... up to $1)
# $2 separating character
# SEQ is the output variable
SEQ=
function seqN() {
SEQ=
C=$1
GAP="$2"
N=1
while [ $C -gt 0 ]
do
C=`expr $C - 1`
if [ $C -gt 0 ]; then
SEQ="$SEQ$N$GAP"
else
SEQ="$SEQ$N"
fi
N=`expr $N + 1`
done
}
#$1 nbr of spaces
function print_spaces()
{
#SAVEIFS=$IFS
IFS="-"
if [ $1 -le 0 ]; then
return;
fi
seqN $1 " "
SPACES=$(echo $SEQ | sed 's/[0-9]//g')
echo -e -n ${SPACES}
#IFS=$SAVEIFS
unset IFS
}
# $1 extra string for header
function print_header()
{
FREE_SPACE=55 # 80 - 23 for "VirtualBox Console 1.x" - 2 for []
REQUIRED_SPCS=`expr ${FREE_SPACE} - ${#1} + 1`
clear
echo -e "${WHITE}VirtualBox Console ${VERSION}${NORMAL} \c"
print_spaces ${REQUIRED_SPCS}
echo -e "[$1]"
echo "--------------------------------------------------------------------------------"
echo ""
}
# progress bar functions
BAR_SIZE=40 # default
# print bar background on current line
# $1 text message to place before the progress bar
# $2 number of steps
function initialize_bar() {
local i=0
BAR_SIZE=`expr 80 - ${#1} - 1`
# bar max steps and remaining chars due to the integer arithmetic
bar_max=$2
bar_cur=0
bar_chars_left=`expr $BAR_SIZE % $bar_max`
# output message without changing the line and leave a white space
echo -n -e "$1 "
seqN $BAR_SIZE " "
echo -n -e ${BAR_BACK_COLOR}
for i in $SEQ; do
echo -n " "
done
echo -n -e ${NORMAL}
# move cursor back to start
for i in $SEQ; do
echo -n -e "\b"
done
}
function increment_bar() {
local i=0
let bar_cur=$bar_cur+1;
let nbr_chars=$BAR_SIZE/$bar_max;
# add one of the remaining chars (due to the integer arithmetics) every % chars_left of current pos
if [ $bar_chars_left -gt 0 ]; then
let nbr_chars=$nbr_chars+1;
bar_chars_left=`expr $bar_chars_left - 1`
fi
local ifs_safe=$IFS
IFS=" "
seqN $nbr_chars " "
for i in $SEQ; do
echo -n -e "${BAR_FORE_COLOR} "
done
echo -n -e "${NORMAL}"
IFS=$ifs_safe
}
function refresh_vmdetails ()
{
print_header "scanning for virtual machines"
#echo -e "Please wait - \c"
VMDETAILS=.vbox_vmdetails
TEMPFILE=.vbox_temp
TEMPFILE2=.vbox_temp2
local nbr_vms=`VBoxManage list vms|wc -l`
if [ $USE_COLOR -gt 0 ]; then initialize_bar "Found $nbr_vms VMs, fetching details" "$nbr_vms"
else echo -e "Found $nbr_vms VMs, fetching details - \c"
fi
# JP: IFS is the field separator in BASH, default is space, so I'm redefining it to \n
# JP: so it's possible to iterate VM names with spaces in the for loop
IFS=$(echo -en "\n\b")
VM_GETINFO="Name:|Guest OS:|Memory size:|Number of CPUs:|State:|VRDE:|Hardware UUID:"
index=1
rm -f $VMDETAILS >/dev/null 2>&1
# JP: redefined the awk field separator to \" to get the VM names with spaces
for i in `VBoxManage list vms|awk -F\" '{print $2}'` ; do
if [ $USE_COLOR -gt 0 ]; then increment_bar
else animate_wheel
fi
VBoxManage showvminfo "$i"|egrep "$VM_GETINFO">$TEMPFILE2
head -7 $TEMPFILE2 >$TEMPFILE
while read vmdetail; do
echo -n "myvm$index) "$vmdetail >>$VMDETAILS
echo "" >>$VMDETAILS
done<$TEMPFILE
index=$(($index+1));
done
# JP: restore IFS state otherwise all echos print a lot of spaces
unset IFS
}
function list_vm_details ()
{
print_header "virtual machine control options"
grep $1 $VMDETAILS|sed -e "s/"$1"/ /"|grep -v VRDE
grep $1 $VMDETAILS|sed -e "s/"$1"/ /"|grep VRDE|sed -e 's/\(.*\) (\([A-Za-z0-9\. ]*\), \([A-Za-z0-9\ ]*\),.*/\1 (\2, \3)/'
}
function select_vm ()
{
response_valid=1
while [ $response_valid -gt 0 ];do
print_header "select id from the list or exit with CTRL-C"
for VMID in `grep "Name:" $VMDETAILS|awk '{print $1}'`
do
VMID=$VMID" "
VMNAME=`grep $VMID $VMDETAILS|sed -e 's/myvm//'|grep "Name:"`
VRDE=`grep $VMID $VMDETAILS|sed -e "s/${VMID}//g"|grep "VRDE:"|sed -e 's/, Multi.*//' -e 's/(//'`
VMSTATE=`grep $VMID $VMDETAILS|sed -e "s/${VMID}//g"|grep "State:"|sed 's/(since.*//'`" "
if [ $USE_COLOR -eq 0 ]; then
SHORTVMSTATE="- [`echo $VMSTATE | awk -F\: '{print $2}'|awk '{gsub(/^[ \t]+|[ \t]+$/,""); print;}'`] "
fi
case $VMSTATE in
*"powered off"*) echo -e $DARKRED $VMNAME ${NORMAL}${SHORTVMSTATE}- $VRDE ;;
*"aborted"*) echo -e $RED $VMNAME ${NORMAL}${SHORTVMSTATE}- $VRDE ;;
*"running"*) echo -e $DARKGREEN $VMNAME ${NORMAL}${SHORTVMSTATE}- $VRDE ;;
*"paused"*) echo -e $YELLOW $VMNAME ${NORMAL}${SHORTVMSTATE}- $VRDE ;;
*"guru meditation"*) echo -e $WHITEONRED $VMNAME - ${VRDE} ${NORMAL}${SHORTVMSTATE} ;;
*) echo -e $NORMAL $VMNAME - $VMSTATE ;;
esac
done # for
No_VMs=`VBoxManage list vms|wc -l`
echo ""
echo -n "Select a VM Id: ";read SELECTED_VM
if echo $SELECTED_VM | grep "^[0-9]*$">/dev/null
then
if [ $SELECTED_VM -gt 0 -a $SELECTED_VM -le $No_VMs ];then
response_valid=0
fi
fi
done #while
SELECTED_VM=myvm$SELECTED_VM")"
SELECTED_VM_NAME=`grep $SELECTED_VM $VMDETAILS|grep "Name:"|awk -F\: '{print $2}'|awk '{gsub(/^[ \t]+|[ \t]+$/,""); print;}'`
SELECTED_VM_UUID=`grep $SELECTED_VM $VMDETAILS|grep "Hardware UUID:"|awk -F\: '{print $2}'`
#SELECTED_VM_STATUS=`grep $SELECTED_VM $VMDETAILS|grep "State:"|awk '{print $3}'`
list_vm_details $SELECTED_VM
echo "--------------------------------------------------------------------------------"
}
function STARTUP_VM ()
{
if grep $SELECTED_VM $VMDETAILS|grep "VRDE:"|grep "enabled" >/dev/null
then
echo "Starting up"
else
read -s -n 1 -p "Warning, VRDE is not enabled, enable it? (Y/[N])" SETVRDE
if [ $SETVRDE == "Y" ] || [ $SETVRDE == "y" ]
then
response_valid=1
while [ $response_valid = 1 ];do
echo
read -p "Enter port number (between $MIN_VRDE_PORT and $MAX_VRDE_PORT): " PORTNUMBER
if [ $PORTNUMBER -ge $MIN_VRDE_PORT -a $PORTNUMBER -le $MAX_VRDE_PORT ] >/dev/null 2>&1;then
VBoxManage modifyvm $SELECTED_VM_UUID --vrde on
VBoxManage modifyvm $SELECTED_VM_UUID --vrdeport $PORTNUMBER
response_valid=0
else
echo "Invalid port number, please choose between $MIN_VRDE_PORT and $MAX_VRDE_PORT"
fi
done
fi
fi
VBoxManage startvm $SELECTED_VM_UUID --type headless
}
function change_vrde_port ()
{
response_valid=1
while [ $response_valid = 1 ];do
echo ""
read -p "Enter port number (between $MIN_VRDE_PORT and $MAX_VRDE_PORT, 0 to return): " PORTNUMBER
if [ $PORTNUMBER -eq 0 ]; then
echo "Nothing changed"
sleep 1
return;
elif [ $PORTNUMBER -ge $MIN_VRDE_PORT -a $PORTNUMBER -le $MAX_VRDE_PORT ] >/dev/null 2>&1;then
VBoxManage modifyvm $SELECTED_VM_UUID --vrde on
VBoxManage modifyvm $SELECTED_VM_UUID --vrdeport $PORTNUMBER
response_valid=0
else
echo "Invalid port number, please try again"
fi
done
}

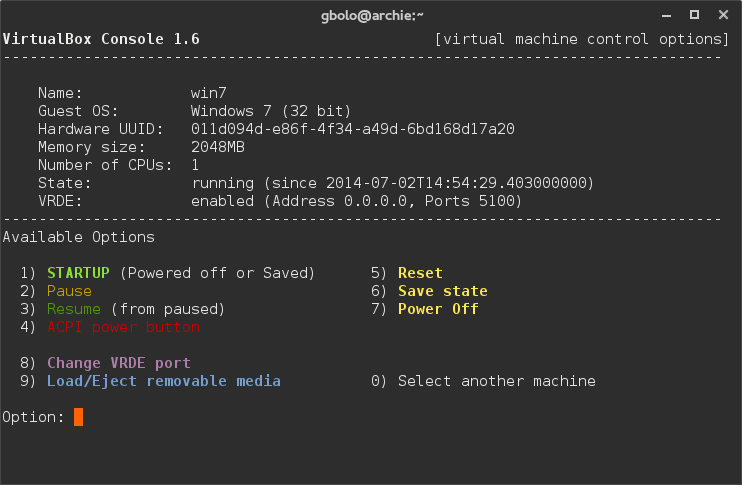

control_vm()
{
response_valid=1
while [ $response_valid -gt 0 ];do
echo "Available Options"
echo ""
echo -e " 1) ${GREEN}STARTUP${NORMAL} (Powered off or Saved) 5) ${YELLOW}Reset${NORMAL}"
echo -e " 2) ${DARKYELLOW}Pause${NORMAL} 6) ${YELLOW}Save state${NORMAL}"
echo -e " 3) ${DARKGREEN}Resume${NORMAL} (from paused) 7) ${YELLOW}Power Off${NORMAL}"
echo -e " 4) ${DARKRED}ACPI power button${NORMAL}"
echo -e ""
echo -e " 8) ${PURPLE}Change VRDE port${NORMAL} 10) ${DARKGREEN}Clone${NORMAL}"
echo -e " 9) ${BLUE}Load/Eject removable media${NORMAL} 11) ${DARKRED}Destroy${NORMAL}"
echo -e "\n 0) Select another machine"
echo -n -e "\nOption: " ;read VM_ACTION
if echo $VM_ACTION | grep "^[0-9]*$">/dev/null
then
if [ $VM_ACTION -ge 0 -a $VM_ACTION -le 11 ];then
response_valid=0
fi
fi
done #while
case $VM_ACTION in
1 ) STARTUP_VM
echo -n "Press enter to continue..."; read dummy
;;
2 ) VBoxManage controlvm $SELECTED_VM_UUID pause
echo -n "Press enter to continue..."; read dummy
;;
3 ) VBoxManage controlvm $SELECTED_VM_UUID resume
echo -n "Press enter to continue..."; read dummy
;;
4 ) VBoxManage controlvm $SELECTED_VM_UUID acpipowerbutton
echo -n "Press enter to continue..."; read dummy
;;
5 ) VBoxManage controlvm $SELECTED_VM_UUID reset
echo -n "Press enter to continue..."; read dummy
;;
6 ) VBoxManage controlvm $SELECTED_VM_UUID savestate
echo -n "Press enter to continue..."; read dummy
;;
7 ) VBoxManage controlvm $SELECTED_VM_UUID poweroff
echo -n "Press enter to continue..."; read dummy
;;
8 ) change_vrde_port
;;
9 ) clear
list_vm_details $SELECTED_VM
echo "-------------------------------------------------------------------------------"
ask_user_for_controller
if [ ${opt} -ne 0 ]; then
echo ""
ask_user_for_mount_umount_action "$CTRL_NAME"
echo ""
case $opt in
1) echo ""
mount_drive "$CTRL_NAME" "$CTRL_PORT" "$CTRL_DEVICE" "$SELECTED_VM_UUID"
echo -n "Press enter to continue..."; read dummy
;;
2) echo ""
umount_drive "$CTRL_NAME" "$CTRL_PORT" "$CTRL_DEVICE" "$SELECTED_VM_UUID"
echo -n "Press enter to continue..."; read dummy
;;
*) echo "Nothing changed"
sleep 1
;;
esac
else
echo "Nothing changed"
sleep 1
fi
;;
10 ) SELECTED_VM_STATUS=`grep $SELECTED_VM $VMDETAILS|grep "State:"|awk '{print $3}'`
if [ $SELECTED_VM_STATUS != "powered" ] ; then
echo -e "You must turn off the virtual machine."
else
read -p "Enter name of new virtual machine (empty to cancel): " VM_NEW
if [ "$VM_NEW" == "" ]; then
echo "Nothing changed."
else
echo "Start cloning..."
vboxmanage clonevm $SELECTED_VM_UUID --mode all --options keepnatmacs --name $VM_NEW --register
fi
fi
echo -n "Press enter to continue..."; read dummy
;;
11 ) SELECTED_VM_STATUS=`grep $SELECTED_VM $VMDETAILS|grep "State:"|awk '{print $3}'`
if [ $SELECTED_VM_STATUS != "powered" ] ; then
echo -e "You must turn off the virtual machine."
else
read -s -n 1 -p "Are you sure to destroy the virtual machine \"$SELECTED_VM_NAME\"? (Y/[N]) " VM_DESTROY
if [ "$VM_DESTROY" == "Y" ] || [ "$VM_DESTROY" == "y" ]; then
echo -e "\nRemoving virtual machine \"$SELECTED_VM_NAME\"..."
vboxmanage unregistervm $SELECTED_VM_UUID --delete
else
echo -e "\nNothing changed."
fi
fi
echo -n "Press enter to continue..."; read dummy
;;
0 ) ;;
esac
}
###############################################################################
###############################################################################
# self contained load/eject floppy/cd/dvd image functions
###############################################################################
# $1 lower limit, $2 upper limit, $3 prompt
# $opt is the output
function read_delimited()
{
response_valid=1;
while [ $response_valid -gt 0 ]; do
read -p "$3" opt;
[ "$opt" == "" ] && opt=-1;
if [ $opt -ge $1 ] && [ $opt -le $2 ]; then
response_valid=0;
else
echo "Invalid number, type a number between $1 and $2"
echo ""
fi
done # while
}
# inputs: $SELECTED_VM_UUID, $SELECTED_VM_NAME
# outputs: $CTRL_NAME, $CTRL_PORT, $CTRL_DEVICE
function ask_user_for_controller()
{
TMP3=.cdchangetmp.txt
# get all vm info
VBoxManage showvminfo ${SELECTED_VM_UUID} > ${TMP3}
# change InternalFieldSeparator to \n
IFS=$'\n'
# get interfaces names
total_ifaces=1
for IFACE in `cat ${TMP3} | grep "Storage Controller Name" | awk -F: '{print $2}'` ; do
controller[$total_ifaces]=${IFACE}
total_ifaces=`expr $total_ifaces + 1`
done
# restore to (white spaces and similar)
unset IFS;
# decrement one in the counter so it represents the last index of the array controller
[ $total_ifaces -gt 1 ] && total_ifaces=`expr $total_ifaces - 1`;
# trim interface names
seqN $total_ifaces " "
for i in $SEQ; do
controller[$i]=`echo ${controller[$i]}`;
done
# now get all controller ports for the interface and show them
echo "Available interfaces on ${SELECTED_VM_NAME}"
total_ports=1
seqN $total_ifaces " "
for i in $SEQ; do
echo "${controller[$i]}"
this_controller_nbr_ports=0;
IFS=$'\n'
for PORT in `cat ${TMP3} | grep -v "Storage Controller Name" | grep ${controller[$i]} | sed -e 's/(UUID:.*)//g'` ; do
ports[$total_ports]=${PORT};
echo " $total_ports) ${ports[$total_ports]}"
total_ports=`expr $total_ports + 1`;
this_controller_nbr_ports=`expr $this_controller_nbr_ports + 1`;
done
unset IFS;
if [ $this_controller_nbr_ports -eq 0 ]; then
echo " -) no devices found";
fi
echo "";
done
echo " 0) Do nothing and go back";
echo "";
# restore to (white spaces and similar)
unset IFS;
# delete the temporary file
rm -f ${TMP3}
# decrement one in the counter so it represents the last index of the array ports
[ $total_ports -gt 1 ] && total_ports=`expr $total_ports - 1`;
# ask for controller
read_delimited 0 $total_ports "Option: "
#echo "You selected $opt, ${ports[$opt]}"
# get controller name and trim it
CTRL_NAME=`echo ${ports[$opt]} | sed -e 's/\([A-Za-z0-9 ]*\)(\([0-9]*\), \([0-9]*\)): \(.*\)/\1/'`;
CTRL_NAME=`echo $CTRL_NAME`;
# get port and device
CTRL_PORT=`echo ${ports[$opt]} | sed -e 's/\([A-Za-z0-9 ]*\)(\([0-9]*\), \([0-9]*\)): \(.*\)/\2/'`;
CTRL_DEVICE=`echo ${ports[$opt]} | sed -e 's/\([A-Za-z0-9 ]*\)(\([0-9]*\), \([0-9]*\)): \(.*\)/\3/'`;
#echo "Interface [${CTRL_NAME}]"
#echo "Port [${CTRL_PORT}]"
#echo "Device [${CTRL_DEVICE}]"
}
# inputs: $1 controller name
# outputs: $opt
function ask_user_for_mount_umount_action()
{
echo "Action on $1"
echo " 1) Load Floppy/CD/DVD image"
echo " 2) Eject image"
echo " 0) Do nothing and go back"
read_delimited 0 2 "Option: "
}
# inputs: $1 controller name, $2 port, $3 device, $4 VM_UUID
# outputs: none
function umount_drive()
{
# Example:
# VBoxManage storageattach 1a03448b-baeb-4b3c-a811-e3b26d4be8e4 --storagectl "IDE Controller" --port 1 --device 0 --type dvddrive --medium emptydrive
echo "Ejecting from $1"
VBoxManage storageattach $4 --storagectl "$1" --port $2 --device $3 --type dvddrive --medium emptydrive
}
# inputs: $1 controller name, $2 port, $3 device, $4 VM_UUID
# outputs: none
function mount_drive()
{
# ask for file name
while true; do
echo "Available disk images"
list_of_isos=`ls -1 *.iso *.img *.ima 2> /dev/null`
IFS=$'\n'
for file in $list_of_isos; do
echo " $file";
done
unset IFS;
echo " "
read -p "Filename (no name to cancel): " filename;
if [ "$filename" == "" ] ; then
echo ""
echo "Nothing changed";
return;
fi
if [ -f "$filename" ] ; then
break;
else
echo "$filename not found, check name and try again";
fi
done
# mount
echo "Loading $filename on $1"
VBoxManage storageattach $4 --storagectl "$1" --port $2 --device $3 --type dvddrive --medium "$filename"
}
###############################################################################
# end of load/eject cd/dvd images
###############################################################################
###############################################################################
function cleanup_before_exit()
{
echo -e "\nSee you soon...";
rm -f ${VMDETAILS} ${TEMPFILE} ${TEMPFILE2}
}
####
#### MAIN
####
#set -x
if [ "`which vboxmanage`" == "" ] || [ "`which VBoxManage`" == "" ]; then
echo -e "Error: `basename $0` requires VirtualBox utilities to be installed and available in the \$PATH\n Make sure vboxmanage is available and try again.\n"
exit 1
fi
trap "cleanup_before_exit;exit" SIGINT SIGTERM
clear
while [ 1 = 1 ];do
refresh_vmdetails
select_vm
#read -s -n 1 -p "Press a key to continue.."
control_vm
done
